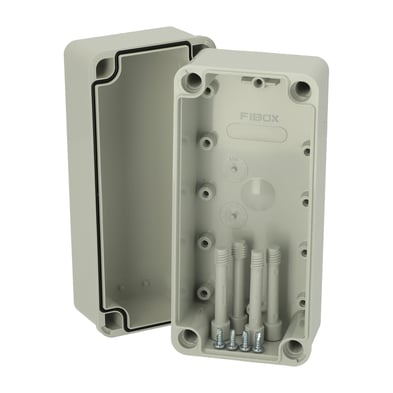

    Base with screws for mounting plate/DIN-rail. cover with PUR gasket and polyamide cover screws.

Piccolo / PICCOLO D / ABS D 85 G

ABS D 85 G 8784308

Dimensions 170 x 80 x 85

Dimensions 6.69 x 3.15 x 3.35

Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and polyamide cover screws.

PC : IP66; IP67; IK08

Product number : 8784308 Download product card

Technical data

Product:

Product nr : 8784308

Description : Enclosure, ABS

Remarks : Grey cover

Package : 8

Unit : Piece

EAN : 6418074002174

SSTL number : 3423461

Electric No. Denmark : 8212001912

Electric No. Sweden : 2536717

ETIM : EC000261

Dimensions :

Height (mm) : 170

Width (mm) : 80

Depth (mm) : 85

Height (inch) : 6.69

Width (inch) : 3.15

Depth (inch) : 3.35

Materials :

Material : ABS

Base colour : RAL 7035 -light grey

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °F : -40 … 140

Ratings :

Ingress Protection (EN 60529): IP66IP67

Impact Resistance (EN 62262): IK08

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

Flammability Rating : UL 94 HB

Glow Wire Test (IEC 60695): 650C

Product is connected to following catalogues :

Piccolo / PICCOLO D / ABS D 85 G

Dimensional Drawings

CAD Files

Please note, that we need you permission in order for you to view the CAD files.

Contact

Accessories

FP 22040

Wall fastening lug (2 pcs), for enclosures:

DH-3

DIN-35 Mounting rail, for enclosures:
(140 x 35 x 1)

D-MP

Mounting plate, for enclosures:
(140 x 54 x 1)

Sample image

Order symbol : ABS D 85 G

Product nr : 8784308

Description : Enclosure, ABS

Remarks : Grey cover

EAN : 6418074002174

El. number :

Finland : 3423461
Denmark : 8212001912
Sweden : 2536717
